RM1,970.00
Radial Engineering Catapult RX4L
Price RM1,970.00
Brand Radial Engineering
Size (L x W x H) 30 cm x 12 cm x 7 cm
Availability In Stock
Quantity
Description

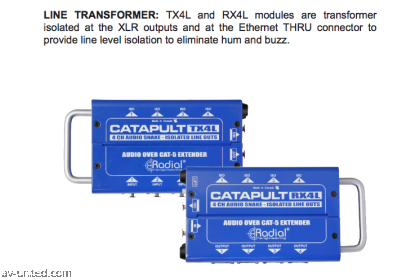

The Catapult TX4L and RX4L are four-channel line level splitters and isolators that allow you to split four audio channels and transmit them over a single standard cat5 shielded twisted pair cable. This allows you to split line level signals between three different destinations, either on stage or using a buildings existing Cat 5 or Cat 6 cabling to route the signal. Each unit features line level isolation transformers which help to eliminate buzz and hum caused by ground loops, saving hours of troubleshooting. The TX4L has four XLR-F inputs and four isolated XLR-M outputs, while the RX4L has four direct XLR-M outputs and four isolated XLR-M outputs. Both units feature RJ45 type Ethercon connections with ground lift switches.

Specifications
Audio circuit type: Passive line splitter, transformer based
Frequency response: 7Hz ~ 20KHz
Dynamic range: 140dB
Total harmonic distortion: 0.0007% @ 1kHz
Common Mode Rejection Ratio: >113dB
Maximum Input: +35dBu
Features
Ground lift
Input Connectors: XLR, RJ45
Output Connectors: XLR, RJ45
General
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): L: 8 1/8 x W: 4 1/8 x H: 2
Weight: 2.6 LBS
Shipping size (L x W x D): L: 11 x W: 5 x H: 2.75
Shipping weight: 2.9 LBS
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
