RM1,450.00 RM2,550.00
Audio Technica ATW-1701/MT830cW System 10 Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz) *LAST UNIT CLEARANCE
Price RM1,450.00 RM2,550.00
Brand Audio-Technica
Size (L x W x H) 30 cm x 40 cm x 10 cm
Availability In Stock
Quantity
This product has a maximum quantity of 1
Description
Highlight
  • Plug & Record Set for DIY Videographer
  • MT830cW Omnidirectional Lavalier Mic
  • Bodypack Transmitter
  • Triple-Diversity Camera-Mount Receiver
  • Protected Peer-to-Peer Connection
  • Easy to Use, Flexible Operation
  • Balanced Output & Headphone Output
  • 7-Hr Batteries + USB Power
  • Up to 8 Mics on Set / 100' Range

The Audio-Technica System 10 ATW-1701/MT830cW is a digital wireless microphone system specifically engineered to meet the audio needs of vloggers, mobile journalists, and videographers. It provides an easy-to-operate solution with sophisticated technology to ensure reliability and high-quality audio for projects ranging from YouTube and wedding videos to corporate spots and interviews.



The ATW-1701/MT830cW features an omnidirectional lavalier microphone and bodypack transmitter for hands-free speech and dialog, along with a camera-mount receiver that connects to your DSLR or mirrorless camera via the included 3.5mm output cable. It operates anywhere in the world, transmitting 24-bit/48 kHz audio in the 2.4 GHz spectrum, well away from potential TV and radio interference.



This peer-to-peer system delivers three levels of diversity assurance—frequency, time, and space—for optimal performance at a range up to 100'. Just power up the components, and the receiver automatically seeks out a clean frequency and pairs up with the transmitter, saving you the hassle of scanning and syncing before a shoot. Up to eight wireless mics may be used on set at once.







Wireless Transmission Digital 2.4 GHz
Included Transmitters 1 x Bodypack
Diversity Frequency, Time & Space Diversity
RF Frequency Band 2400 to 2483.5 MHz
Max Operating Range 100' / 30.5 m (Line of Sight)
Max Systems per Setup 8
Sample Rate/Resolution 48 kHz / 24-Bit
Dynamic Range >109 dBA

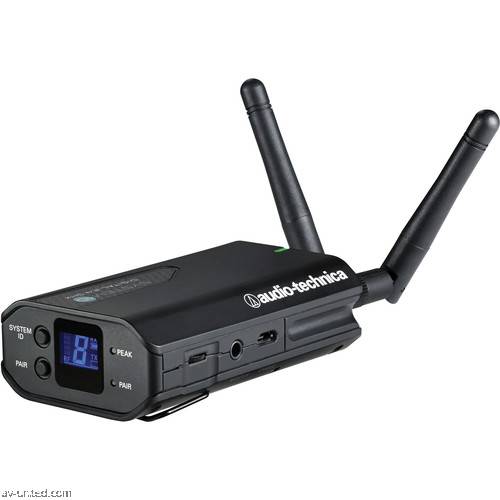

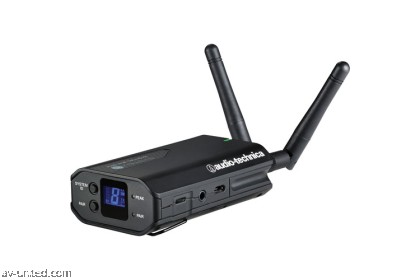

Receiver

Form Factor Camera-Mount
Mounting Options Belt Clip, Shoe-Mount (with Included Hardware)
Antenna 2 x External, Detachable
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Balanced/Unbalanced Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Audio Output Level 1/8" / 3.5 mm Output:
+6 dBV (Balanced)
1/8" / 3.5 mm Output:
0 dBV (Unbalanced)
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity 1 x Micro-USB (Bus Power, Charging)
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Not Replaceable)
Internal Battery Capacity 1460 mAh
Battery Charging Time 4 Hours
Approx. Battery Life 12 Hours (Lithium Rechargeable)
Display & Indicators 1 x LCD (Battery Status, Channel, Mute, RF Level)
Housing Plastic
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 2.2 x 3.6 x 1.1" / 55.9 x 91.4 x 27.9 mm
Weight 3.7 oz / 104.9 g

Transmitter

Form Factor Bodypack
RF Output Power 10 mW
Audio I/O 1 x Hirose cW-Style 4-Pin Male Input (Lockable)
Muting Off/On Switch
Audio Input Level (Mic Level, Instrument Level)
Frequency Response 20 Hz to 20 kHz
Antenna 1 x External, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life 7 Hours (Alkaline)
Display & Indicators 1 x LCD (Channel)
Housing Plastic
Dimensions 2.7 x 4.2 x 0.9" / 68.6 x 106.7 x 22.9 mm
Weight 3.5 oz / 99.2 g

Microphone

Form Factor Lavalier
Sound Field Mono
Operating Principle Pressure Operated
Capsule Condenser
Polar Pattern Omnidirectional
Frequency Range 30 Hz to 20 kHz
SNR 67 dB
Maximum SPL 135 dB SPL
Impedance 200 Ohms
Sensitivity -37 dB
Dynamic Range 108 dB
Output Connectors 1 x Hirose cW-Style 4-Pin Female (Lockable)
Cable Length 4.59' / 1.40 m
Operating Voltage 11 to 52 V
Operating Current Consumption 2 mA
Length 0.62" / 15.75 mm
Diameter 0.33" / 8.38 mm
Weight 0.05 oz / 1.42 g

Packaging Info

Package Weight 1.54 lb
Box Dimensions (LxWxH) 13.95 x 7.05 x 3.2"
