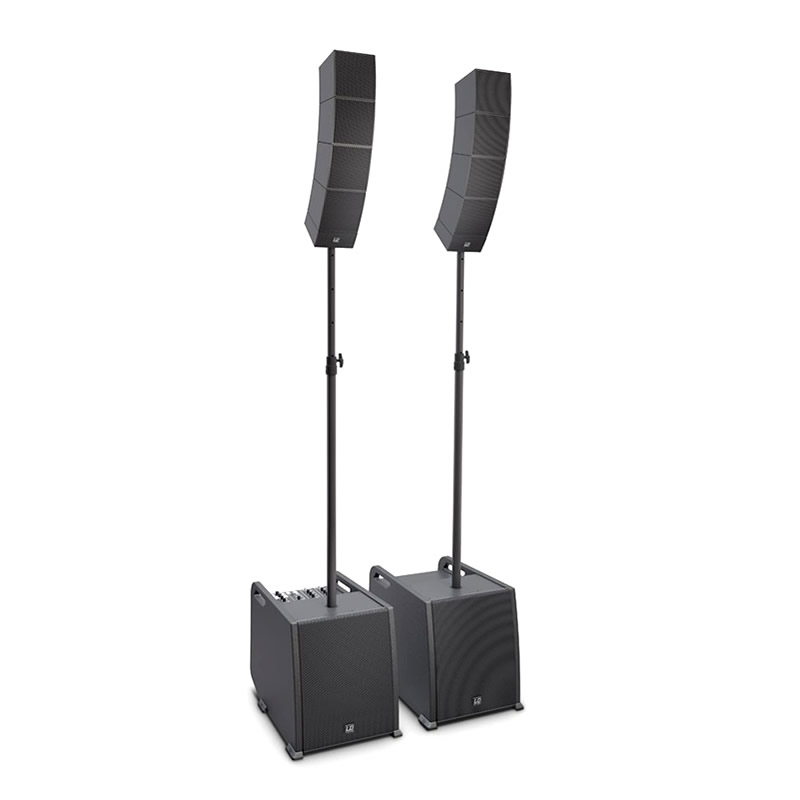

- The first truly portable array system
- Fully scalable for far and near field applications
- WaveAhead® technology for high definition audio
- SmartLink® plug & play adapter for universal mounting options
- Built-in 4 channel mixer with DFX and Bluetooth® technology
- Durable lightweight aluminium unibody array elements
- For mobile and fixed applications
- The first truly portable array system
- Fully scalable for far and near field applications
- WaveAhead® technology for high definition audio
- SmartLink® plug & play adapter for universal mounting options
- Built-in 4 channel mixer with DFX and Bluetooth® technology
- Durable lightweight aluminium unibody array elements
- For mobile and fixed applications
- Portable touring array system for live events, DJs and bands
- 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
- 1,000 watts RMS system power and 131 dB max. SPL
- Fully scalable for far and near field applications
- SmartLink® plug & play adapter for versatile application
- Durable aluminum unibody satellite construction
- 18 mm birch ply subwoofer cabinet with Polyurea finish
- Ergonomic handles for convenient transport and setup
Specifications
| Weight | 11,3 kg |
| Product type | PA Complete Systems |
| Color | Black |
| Max. SPL (continuous) | 114 dB |
| Max. SPL (peak) | 120 dB |
| Frequency response | 50 - 20000 Hz |
| Dispersion (H x V) | 120° x 20 ° |
| Overall height | 1985 mm |
| Other features | 4 channel mixer , Bluetooth , DSP-based signal processing |
Woofer characteristics
| Low/mid driver dimensions | 8 " |
| Woofer size | 203.2 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Woofer voice coil | 2 " |
| Woofer voice coil (mm) | 50.8 mm |
| Cabinet construction | Bass Reflex |
| Cabinet material | ABS plastic |
| Subwoofer width | 305 mm |
| Subwoofer height | 405 mm |
| Subwoofer depth | 395 mm |
Mid/Hi System
| Midrange size | 4 x 3 " |
| Midrange size | 4 x 76.2 mm |
| Midrange magnet | Neodymium |
| Midrange brand | Custom-made |
| Midrange voice coil | 1 " |
| Midrange voice coil | 25.4 mm |
| Mid/Hi system impedance | 4 Ohm(s) |
| Loudspeaker inputs | 1 |
| Speaker input connections | Custom-made multipin |
| Cabinet construction mid/high | Closed |
| Mid/Hi system cabinet material | ABS plastic |
| Mid/Hi system width | 82 mm |
| Mid/Hi system height | 535 mm |
| Mid/Hi system depth | 105 mm |
Amplifier module (integrated in subwoofer)
| Amplifier | Class D |
| Amplifier output system (RMS) | 200 W |
| Amplifier output system (peak) | 800 W |
| Protection circuits | DSP-based multiband limiter , over-current , short circuit , thermal overload |
| Cooling | Convection |
| Controls | BT level , BT pairing , limiter , Line level , Main level , Mic level , MP3 / Hi-Z level , On , Protect (protection circuit engaged) , Signal , Sub level |
| Indicators | Limit , On , Protect (protection circuit engaged) , Signal |
| Operating voltage | Switching power supply |
| Operating voltage | 100 V AC - 120 V AC, 50 - 60 Hz , 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion) |
| Line inputs | 2 x stereo |
| Line input connectors | 6.3 mm jack , XLR |
| Mic inputs | 1 |
| Mic inputs | 6.3 mm jack , XLR |
| MP3 inputs | 1 |
| MP3 input connectors | 3.5 mm jack |
| Hi-Z inputs | 1 |
| Hi-Z input connectors | 6.3 mm jack |
| Loudspeaker outputs | 1 |
| Speaker output connections | Custom-made multipin |
DSP characteristics
| Bit depth AD/DA converter | 24 / 24 bit |
| Internal sampling frequency | 48 kHz |
A complete sound system that you can carry together with your instrument: introducing the MAUI 11 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.
The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.
The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.
With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details.

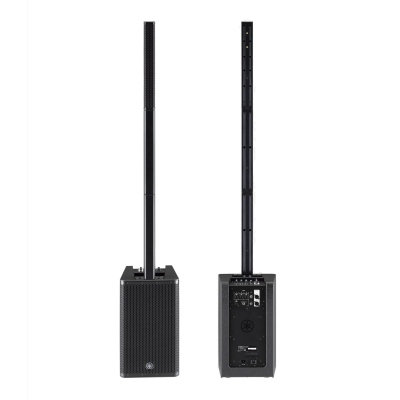

- Professional column PA system with 1500 W RMS and 132 dB max. SPL
- Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)
- TrueWireless™ stereo technology for wireless stereo pairing of two column systems
- aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
- BEM-optimized high-frequency waveguide for uniform dispersion pattern, phase plug for coherent mid-range wavefront and flow-optimised bass-reflex ports
- DynX® DSP technology for distortion-free sound at maximum volume
- Automatic setup detection
- Fast and simple assembly without stands or cables
- Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column
| Product type | Battery-powered PA speaker |
| Version | Set with Handheld Transmitter |
| Low/mid driver dimensions | 10 " |
| Woofer size | 254 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1 " |
| HF Driver Size | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Amplifier | Class D |
| RMS | 80 W |
| Peak power | 320 W |
| Frequency response | 70 - 16.000 Hz |
| SPL (1W/1m) | 95 dB |
| Max. SPL | 115 dB |
| Protection circuits | short circuit |
| Controls | Audio-link set (master / slave) , Audio-link slave volume , Bass , Line Gain , Master , Power , Speech / music switch (Mic / Line 1) , Speech / music switch (Mic / Line 2) , Treble , Value Down , Voice priority on / off , Volume Mic 1 , Volume Mic 2 |
| Indicators | Charge/battery status , Power |
Media player
| Supported media | Audio-CD , CD-R , CD-R/W , SD Card , USB stick |
| Supported formats | Audio-CD , MP3 file , MP3-CD , WMA file , WMA-CD |
| Media player controls | CD ejector , Folder - , Folder + , Mode (CD / SD / USB) , mute , Next Track , Play / Pause , Power / Volume , Previous Track , Program , Repeat , Shuffle , Stop |
| Media player display elements | Lighted multifunctional LC display |
| Line inputs | 3 |
| Line input connectors | 2 x RCA , Audio-link input XLR, female |
| Mic inputs | 2 |
| Mic inputs | 6.3 mm jack , XLR |
| Line outputs | 3 |
| Line output connectors | 2 x RCA , Audio-link output XLR, male |
| Loudspeaker outputs | Speaker Out Switched , Speaker Out Unswitched |
| Speaker output connections | 6.3 mm jack |
| Transmission frequency range | 863 - 865 MHz |
| Operating voltage | transformer |
| Operating voltage | 200 V AC - 250 V AC , 24 V DC - 32 V DC (5A) |
| Rechargeable batteries | 2 x 12 V / 4.5 AH |
| Cabinet material | Aluminum , plastic |
| Cabinet construction | Bass Reflex |
| Width | 355 mm |
| Height | 610 mm |
| Depth | 315 mm |
| Weight | 19 kg |
| Other features | additional radio receiver (LDRM102R) available optionally , Audio-link function , Stand mount 36 mm , Transport bag available optionally , Transport casters , transport handle , Trolley handle |
