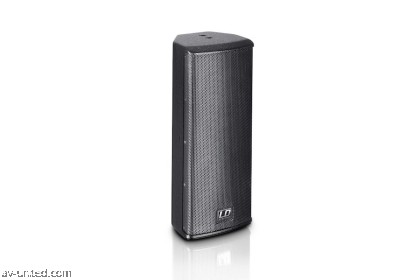

LD Systems LDSAT242G2 2 x 4" Passive Installation Monitor Speaker, Black
Price RM550.00
Brand LD Systems
Size (L x W x H) 13.5 cm x 14 cm x 37.8 cm
Availability Out Of Stock

The closed design of the sleek, compact speaker is loaded with 4" custom woofers and a 1“ silk dome tweeter with wave guide, which provide for a maximum sound-level pressure of 108 dB. The LD SAT242G2 is rated for 100 W RMS power can can be used alone as a full-range speaker or with a subwoofer in the in the LD installation series for bass expansion. The cabinet of the SAT242G2 is made of 12mm MDF with a durable textured finish and is available in black and white. It is connected via spring terminals. M6 inserts and an included mounting bracket provide numerous possibilities for mounting; a universal joint mount is available as an accessory.


Product type Installation Loudspeakers
Type Wall-mounted Loudspeaker
Low/mid driver dimensions 2 x 4 "
Woofer size 2 x 101 mm
Woofer magnet Ferrite
Woofer brand Custom-made
HF driver dimensions 1 "
HF Driver Size 25 mm
HF driver magnet Ferrite
HF driver brand Custom-made
Dispersion (H x V) 60 x 60 °
Load rating (RMS) 100 W
Frequency response 75 - 20000 Hz
SPL (1W/1m) 88 dB
Max. SPL 108 dB
Impedance 8 Ohm(s)
Protection circuits HF Driver
Loudspeaker inputs 1
Speaker input connections Clamp connector
Speakers per amplifier channel (DSP44/45K) 4
Cabinet material 12 mm MDF
Cabinet surface texture paint
Cabinet colour Black
Cabinet construction Closed
Width 140 mm
Height 378 mm
Depth 135 mm
Weight 4,15 kg
